Nissan LEAF 24 kWh(MY11-13)
Nissan logo
Nissan

Nissan LEAF 24 kWh(MY11-13)

Available Hatchback FWD
33.990 € $36,709£28,892
WLTP Range
125 km78 mi
Net Battery
22 kWh
0-100 km/h
11.9s
Peak Power
80 kW
A day with this car
DC 10–80%
29 min
46 kW peak · 34 kW avg
Home wallbox
8h
3.3 kW AC · 0–100% overnight
Winter highway
90 km56 mi
Cold, 120 km/h class
Charge ports
CHAdeMO
Type 1 · front middle

One-stop highway day · 137 km85 mi in 1h 30min

91 km57 mi
50min
15 min
charge
46 km29 mi
25min
WLTP Range
125 km78 mi
Official Combined
Usable Battery
22 kWh
24.0 kWh Gross
Peak Power
80 kW
107 hp
0-100 km/h
11.9 s
Max: 144 km/h89 mph
DC Fast Peak
46 kW
High-Power DC

Performance & Powertrain

FWD Dedicated EV Platform
Total System Power 80 kW (107 hp)
Total System Torque 280 Nm
0-100 km/h Sprint 11.9 s
Top Speed 144 km/h89 mph
Drivetrain Configuration FWD
Platform Code Nissan LEAF

Battery Engineering & Chemistry

400 V NMC
Usable Battery Capacity 22 kWh
Nominal Battery Capacity 24.0 kWh
Battery Type Lithium-ion
Cell Form Factor Pouch
Nominal Voltage No Data
Total Cell Count 192
Pack Configuration 96s2p
Manufacturer Battery Warranty 5 years / 100,000 km62 mi

Dimensions, Cargo & Towing

Frunk: No Data
Boot Cargo Volume 330 L11.7 cu ft
Max Cargo (Seats Down) 680 L24.0 cu ft
Front Trunk (Frunk) No Data
Unladen Curb Weight 1,600 kg3,527 lbs
Overall Length 4445 mm175.0 in
Width (with mirrors) No Data
Overall Height 1550 mm61.0 in
Wheelbase 2700 mm106.3 in
0
Towing Capacity (Unbraked) 0 kg0 lbs
Gross Vehicle Weight (GVWR) 1965 kg4,332 lbs
Max Payload Capacity 440 kg970 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 5 people seats
Isofix Anchor Points Yes, 2 seats
Turning Circle 10.4 m34.1 ft
Market Segment C - Medium
Roof Rails No
Heat Pump No

Euro NCAP Safety Assessment

★★★★★ 5 Stars (2012)
Adult Occupant Protection 89%
Child Occupant Protection 83%
Vulnerable Road Users (Pedestrians) 65%
Active Safety Assist Systems 84%

Estimated Range by Weather & Road

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 65% for cold motorway driving, 115% for mild city driving). Your range depends on speed, wheels, load and heating. For a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 81 km50 mi | Mild Urban: 144 km89 mi
Worst-Case Winter Highway WLTP Lab: 125 km78 mi Best-Case Mild Urban
❄️ Cold Winter (-10°C)
Cabin Heat On
City Driving
Urban stop-and-go
93 km58 mi
Highway Cruising
Motorway speeds
81 km50 mi
Combined Cycle
Everyday winter commute
88 km55 mi
☀️ Mild Summer (23°C)
Optimal Temperature
City Driving
Peak regen recovery
144 km89 mi
Highway Cruising
Motorway speeds
103 km64 mi
Combined Cycle
Ideal mixed-use range
120 km75 mi
High-Power Road Trips

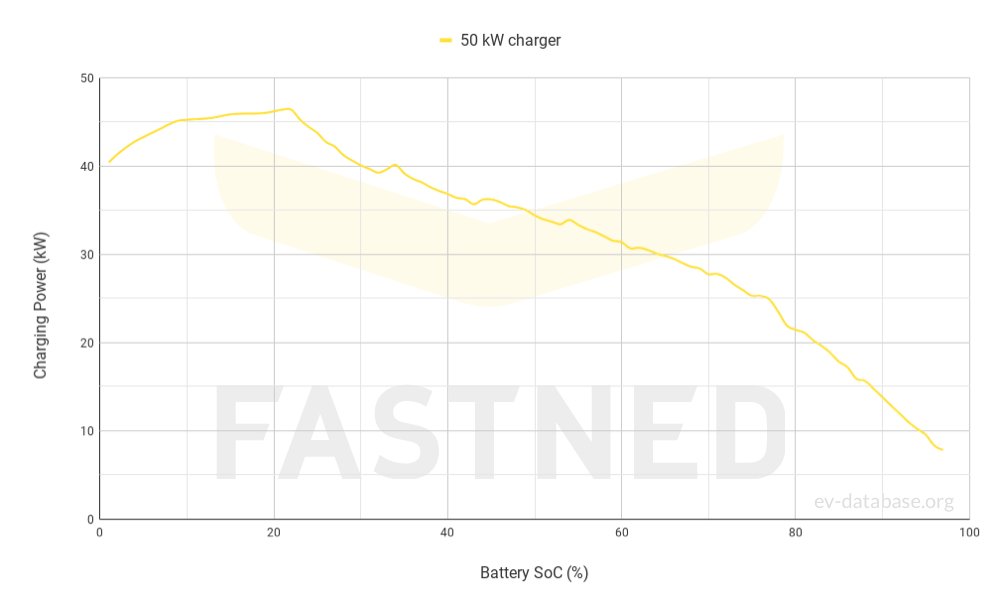

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
46 kW DC
Maximum Power
10-80% Session
29 min
Typical Road Stop
Average Power
34 kW DC
Sustained Rate
Range Added
180 km/h112 mph
Added per Hour
Plug & Charge (ISO 15118) No
Battery Preconditioning Auto via Nav
Autocharge Protocol No
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
3.3 kW AC
3-Phase Wallbox
0-100% Duration
8 hours
Full Overnight Charge
Charge Speed
16 km/h10 mph
Range per Hour
Port Location
Front Side - Middle
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

Rating calculation pending live road testing.

Vehicle Overview

  • Manufacturer Nissan
  • WLTP Range 125 km78 mi
  • Net Battery 22 kWh
  • DC Fast Charging 46 kW
  • Towing Capacity No Towing
  • Market Availability Available
  • Release Date 3/1/2011
  • Telemetry Verified 5/26/2026
Frequently Asked Questions

Nissan LEAF 24 kWh(MY11-13) Range & Charging FAQ

What is the real-world highway and winter range of the Nissan LEAF 24 kWh(MY11-13)?

The official combined WLTP range for the Nissan LEAF 24 kWh(MY11-13) is 125 km (78 miles).

Compare with the Nissan LEAF 24 kWh(MY14-17).

In cold winter conditions (-5°C / 23°F) at highway cruising speeds (120-130 km/h), expect a realistic highway range of approximately 90 km (56 miles) due to cold battery chemistry, cabin heating, and higher aerodynamic drag.

How long does it take to charge the Nissan LEAF 24 kWh(MY11-13) at home?

Charging the 22 kWh battery from 0% to 100% takes approximately 1.8 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 2.7 hours (typically overnight).

How fast is DC fast charging (10% to 80%)?

The Nissan LEAF 24 kWh(MY11-13) supports peak DC fast charging rates of up to 46 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 28 minutes at a compatible ultra-rapid charging station.

How much does it cost to charge the Nissan LEAF 24 kWh(MY11-13)?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €5.28. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €14.30.
