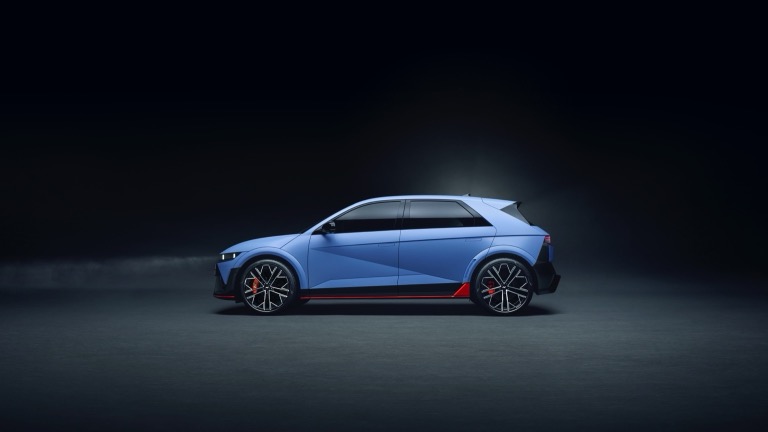

Hyundai IONIQ 5 N(MY24)
Hyundai logo
Hyundai

Hyundai IONIQ 5 N(MY24)

Available SUV AWD
74.900 € $80,892£63,665
390 km242 mi
Range
80
kWh
3.4s
0-100
478
kW

Performance

Power 478 kW (650 hp)
Torque 740 Nm
Acceleration 0-100 km/h 3.4 s
Top Speed 260 km/h162 mph
Drive Type AWD
Electric Range (WLTP) 390 km242 mi

Battery

Battery Capacity (usable) 80 kWh
Battery Capacity (nominal) 84.0 kWh
Battery Type Lithium-ion
Cathode Material NMC
Architecture 800 V
Nominal Voltage 697 V
Number of Cells 384
Pack Configuration 192s2p
Form Factor Pouch
Warranty 8 years / 160,000 km99 mi

Real Range

City (Winter -10°C) 395 km245 mi
Highway (Winter -10°C) 280 km174 mi
Combined (Winter -10°C) 335 km208 mi
City (Summer 23°C) 570 km354 mi
Highway (Summer 23°C) 350 km217 mi
Combined (Summer 23°C) 440 km273 mi

Bidirectional Charging (V2X / BPT)

V2L (Vehicle-to-Load) Yes
V2L Max Power 3.6 kW AC
V2H AC (Vehicle-to-Home) No
V2H DC (Vehicle-to-Home) No
V2G AC (Vehicle-to-Grid) No
V2G DC (Vehicle-to-Grid) No

Dimensions & Weight

Length 4715 mm185.6 in
Width 2152 mm84.7 in
Width (with mirrors) 2152 mm84.7 in
Height 1585 mm62.4 in
Wheelbase 3000 mm118.1 in
Weight 2,225 kg4,905 lbs
Gross Vehicle Weight (GVWR) 2660 kg5,864 lbs
Max Payload 510 kg1,124 lbs
Cargo Volume 480 L17.0 cu ft
Cargo Volume (max) 1540 L54.4 cu ft
Frunk Volume 0 L0.0 cu ft
Roof Load 0 kg0 lbs
Tow Hitch No
Towing Capacity (unbraked) 0 kg0 lbs
Towing Capacity (braked) 0 kg0 lbs
Max Vertical Load 0 kg0 lbs

Miscellaneous

Seats 5 people
Isofix Yes, 2 seats
Turning Circle 12.4 m40.7 ft
Platform HMG E-GMP
EV Platform Yes
Body Type SUV
Segment JC - Medium
Roof Rails No
Heat Pump Yes
Heat Pump (Standard) Yes

Safety (Euro NCAP)

Rating 5 ★ (2021)
Adult Occupant 88%
Child Occupant 86%
Vulnerable Road Users 63%
Safety Assist 88%

Home Charging (0 → 100%)

Charge Port Type 2
Port Location Right Side - Rear
Charge Power 11 kW AC
Charge Time 8h45m
Charge Speed 46 km/h29 mph

DC Fast Charging (10 → 80%)

Charge Port CCS
Port Location Right Side - Rear
Max. Power 263 kW DC
Avg. Power (10-80%) 196 kW DC
Charge Time 8h45m
Charge Speed 46 km/h29 mph
Autocharge Yes
Charge 20-80% 11 min
Charge 10-90% 15 min

Plug & Charge

Supported Announced
Protocol ISO 15118-2

Battery Preconditioning

Preconditioning Yes
Auto via Navigation Yes

Range Estimation

595 km370 mi
City
390 km242 mi
Combined (WLTP)
255 km158 mi
Highway

Real-World Range

280 km174 mi 570 km354 mi

Efficiency: 224 Wh/km360 Wh/mi

Real-world range varies based on temperature, speed, driving style, and terrain.

Long Distance Rating

3.0/ 5.0
Good

This rating considers:

  • Real highway range (WLTP: 390 km242 mi)
  • Charging speed and charging time
  • Vehicle efficiency

Quick Overview

  • Brand Hyundai
  • WLTP Range 390 km242 mi
  • Battery Capacity 80 kWh
  • DC Fast Charging 263 kW
  • Towing Capacity No Towing
  • Release Date 11/1/2023
  • Last Updated 5/21/2026
