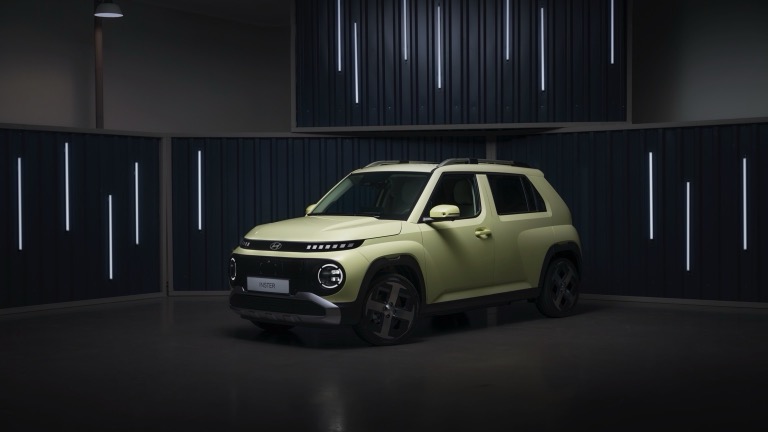

Hyundai INSTER Standard Range
Hyundai logo
Hyundai

Hyundai INSTER Standard Range

Available SUV FWD
23.900 € $25,812£20,315
WLTP Range
255 km158 mi
Net Battery
39 kWh
0-100 km/h
11.7s
Peak Power
71 kW
A day with this car
DC 10–80%
29 min
73 kW peak · 60 kW avg
Home wallbox
4h 15m
11 kW AC · 0–100% overnight
Winter highway
184 km114 mi
Cold, 120 km/h class
Charge ports
CCS
Type 2 · front left

One-stop highway day · 266 km165 mi in 2h 40min

181 km112 mi
1h 39min
15 min
charge
85 km53 mi
46min
WLTP Range
255 km158 mi
Official Combined
Usable Battery
39 kWh
42.0 kWh Gross
Peak Power
71 kW
95 hp
0-100 km/h
11.7 s
Max: 140 km/h87 mph
DC Fast Peak
73 kW
High-Power DC

Performance & Powertrain

FWD Dedicated EV Platform
Total System Power 71 kW (95 hp)
Total System Torque 147 Nm
0-100 km/h Sprint 11.7 s
Top Speed 140 km/h87 mph
Drivetrain Configuration FWD
Platform Code No Data

Battery Engineering & Chemistry

400 V NMC
Usable Battery Capacity 39 kWh
Nominal Battery Capacity 42.0 kWh
Battery Type Lithium-ion
Cell Form Factor No Data
Nominal Voltage 266 V
Total Cell Count No Data
Pack Configuration No Data
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Frunk: No Data
Boot Cargo Volume 280 L9.9 cu ft
Max Cargo (Seats Down) 1059 L37.4 cu ft
Front Trunk (Frunk) No Data
Unladen Curb Weight 1,380 kg3,042 lbs
Overall Length 3825 mm150.6 in
Width (with mirrors) No Data
Overall Height 1575 mm62.0 in
Wheelbase 2580 mm101.6 in
Towing Capacity (Unbraked) No Data
Gross Vehicle Weight (GVWR) 1730 kg3,814 lbs
Max Payload Capacity 425 kg937 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 4 people seats
Isofix Anchor Points Yes, 2 seats
Turning Circle No Data
Market Segment JA - Mini
Roof Rails Yes
Heat Pump Varies by country

Euro NCAP Safety Assessment

★★★ 3 Stars (2025)
Adult Occupant Protection 70%
Child Occupant Protection 81%
Vulnerable Road Users (Pedestrians) 70%
Active Safety Assist Systems 67%

Estimated Range by Weather & Road

Efficiency: 153 Wh/km246 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 65% for cold motorway driving, 115% for mild city driving). Your range depends on speed, wheels, load and heating. For a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 166 km103 mi | Mild Urban: 293 km182 mi
Worst-Case Winter Highway WLTP Lab: 255 km158 mi Best-Case Mild Urban
❄️ Cold Winter (-10°C)
Cabin Heat On
City Driving
Urban stop-and-go
189 km117 mi
Highway Cruising
Motorway speeds
166 km103 mi
Combined Cycle
Everyday winter commute
179 km111 mi
☀️ Mild Summer (23°C)
Optimal Temperature
City Driving
Peak regen recovery
293 km182 mi
Highway Cruising
Motorway speeds
209 km130 mi
Combined Cycle
Ideal mixed-use range
245 km152 mi
High-Power Road Trips

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
73 kW DC
Maximum Power
10-80% Session
29 min
Typical Road Stop
Average Power
60 kW DC
Sustained Rate
Range Added
360 km/h224 mph
Added per Hour
Plug & Charge (ISO 15118) Yes
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
4h15m
Full Overnight Charge
Charge Speed
61 km/h38 mph
Range per Hour
Port Location
Front Side - Left
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
3.6 kW AC
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
1.5/ 5.0
Urban Focused / Frequent Charging Stops

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (255 km158 mi).

Vehicle Overview

  • Manufacturer Hyundai
  • WLTP Range 255 km158 mi
  • Net Battery 39 kWh
  • DC Fast Charging 73 kW
  • Towing Capacity No Towing
  • Market Availability Available
  • Release Date 10/1/2024
  • Telemetry Verified 5/20/2026
Frequently Asked Questions

Hyundai INSTER Standard Range Range & Charging FAQ

What is the real-world highway and winter range of the Hyundai INSTER Standard Range?

The official combined WLTP range for the Hyundai INSTER Standard Range is 255 km (158 miles).

In cold winter conditions (-5°C / 23°F) at highway cruising speeds (120-130 km/h), expect a realistic highway range of approximately 184 km (114 miles) due to cold battery chemistry, cabin heating, and higher aerodynamic drag.

How long does it take to charge the Hyundai INSTER Standard Range at home?

Charging the 39 kWh battery from 0% to 100% takes approximately 3.2 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 4.7 hours (typically overnight).

How fast is DC fast charging (10% to 80%)?

The Hyundai INSTER Standard Range supports peak DC fast charging rates of up to 73 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 31 minutes at a compatible ultra-rapid charging station.

How much does it cost to charge the Hyundai INSTER Standard Range?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €9.36. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €25.35.
