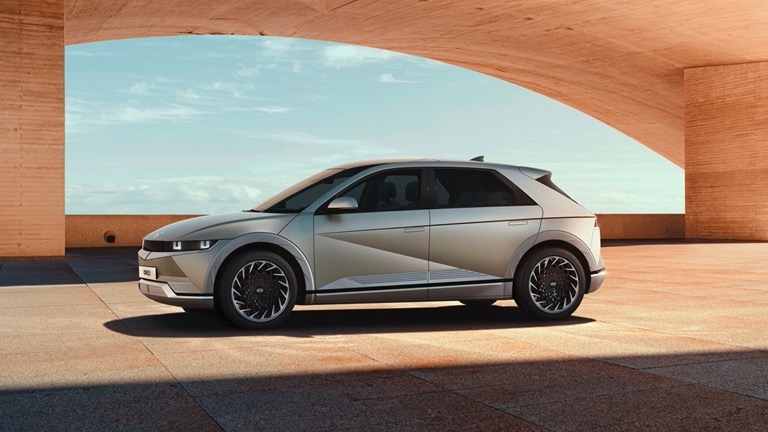

Hyundai IONIQ 5 Long Range AWD(MY22)
Hyundai logo
Hyundai

Hyundai IONIQ 5 Long Range AWD(MY22)

Available SUV AWD
59.200 € $63,936£50,320
WLTP Range
385 km239 mi
Net Battery
74 kWh
0-100 km/h
5.1s
Peak Power
239 kW
A day with this car
DC 10–80%
17 min
233 kW peak · 196 kW avg
Home wallbox
8h
11 kW AC · 0–100% overnight
Winter highway
277 km172 mi
Cold, 120 km/h class
Charge ports
CCS
Type 2 · right rear

One-stop highway day · 479 km298 mi in 4h 36min

278 km173 mi
2h 31min
15 min
charge
201 km125 mi
1h 50min
WLTP Range
385 km239 mi
Official Combined
Usable Battery
74 kWh
77.4 kWh Gross
Peak Power
239 kW
321 hp
0-100 km/h
5.1 s
Max: 185 km/h115 mph
DC Fast Peak
233 kW
High-Power DC

Performance & Powertrain

AWD Dedicated EV Platform
Total System Power 239 kW (321 hp)
Total System Torque 605 Nm
0-100 km/h Sprint 5.1 s
Top Speed 185 km/h115 mph
Drivetrain Configuration AWD
Platform Code HMG E-GMP

Battery Engineering & Chemistry

⚡ 800V Architecture NMC
Usable Battery Capacity 74 kWh
Nominal Battery Capacity 77.4 kWh
Battery Type Lithium-ion
Cell Form Factor Pouch
Nominal Voltage 697 V
Total Cell Count 384
Pack Configuration 192s2p
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Towing: 1600 kg Frunk: 24 L0.8 cu ft
Boot Cargo Volume 527 L18.6 cu ft
Max Cargo (Seats Down) 1578 L55.7 cu ft
Front Trunk (Frunk) 24 L0.8 cu ft
Unladen Curb Weight 2,120 kg4,674 lbs
Overall Length 4635 mm182.5 in
Width (with mirrors) 2152 mm84.7 in
Overall Height 1605 mm63.2 in
Wheelbase 3000 mm118.1 in
Towing Capacity (Braked) 1,600 kg3,527 lbs
Towing Capacity (Unbraked) 750 kg1,653 lbs
Gross Vehicle Weight (GVWR) 2560 kg5,644 lbs
Max Payload Capacity 515 kg1,135 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 5 people seats
Isofix Anchor Points Yes, 2 seats
Turning Circle 12 m39.4 ft
Market Segment JC - Medium
Roof Rails No
Heat Pump Standard Equipment

Euro NCAP Safety Assessment

★★★★★ 5 Stars (2021)
Adult Occupant Protection 88%
Child Occupant Protection 86%
Vulnerable Road Users (Pedestrians) 63%
Active Safety Assist Systems 88%

Estimated Range by Weather & Road

Efficiency: 192 Wh/km309 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 65% for cold motorway driving, 115% for mild city driving). Your range depends on speed, wheels, load and heating. For a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 250 km155 mi | Mild Urban: 443 km275 mi
Worst-Case Winter Highway WLTP Lab: 385 km239 mi Best-Case Mild Urban
❄️ Cold Winter (-10°C)
Cabin Heat On
City Driving
Urban stop-and-go
285 km177 mi
Highway Cruising
Motorway speeds
250 km155 mi
Combined Cycle
Everyday winter commute
270 km168 mi
☀️ Mild Summer (23°C)
Optimal Temperature
City Driving
Peak regen recovery
443 km275 mi
Highway Cruising
Motorway speeds
316 km196 mi
Combined Cycle
Ideal mixed-use range
370 km230 mi
High-Power Road Trips

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
233 kW DC
Maximum Power
10-80% Session
17 min
Typical Road Stop
Average Power
196 kW DC
Sustained Rate
Range Added
950 km/h590 mph
Added per Hour
Plug & Charge (ISO 15118) No
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
8 hours
Full Overnight Charge
Charge Speed
49 km/h30 mph
Range per Hour
Port Location
Right Side - Rear
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
3.6 kW AC
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
3.0/ 5.0
Capable Long-Distance EV

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (385 km239 mi).

Vehicle Overview

  • Manufacturer Hyundai
  • WLTP Range 385 km239 mi
  • Net Battery 74 kWh
  • DC Fast Charging 233 kW
  • Towing Capacity 1,600 kg3,527 lbs
  • Market Availability Available
  • Release Date 4/1/2022
  • Telemetry Verified 5/24/2026
Frequently Asked Questions

Hyundai IONIQ 5 Long Range AWD(MY22) Range & Charging FAQ

What is the real-world highway and winter range of the Hyundai IONIQ 5 Long Range AWD(MY22)?

The official combined WLTP range for the Hyundai IONIQ 5 Long Range AWD(MY22) is 385 km (239 miles).

Compare with the Hyundai IONIQ 5 Long Range 2WD(MY22).

In cold winter conditions (-5°C / 23°F) at highway cruising speeds (120-130 km/h), expect a realistic highway range of approximately 277 km (172 miles) due to cold battery chemistry, cabin heating, and higher aerodynamic drag.

How long does it take to charge the Hyundai IONIQ 5 Long Range AWD(MY22) at home?

Charging the 74 kWh battery from 0% to 100% takes approximately 6.1 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 9 hours (typically overnight).

How fast is DC fast charging (10% to 80%)?

The Hyundai IONIQ 5 Long Range AWD(MY22) supports peak DC fast charging rates of up to 233 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 19 minutes at a compatible ultra-rapid charging station.

How much does it cost to charge the Hyundai IONIQ 5 Long Range AWD(MY22)?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €17.76. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €48.10.
