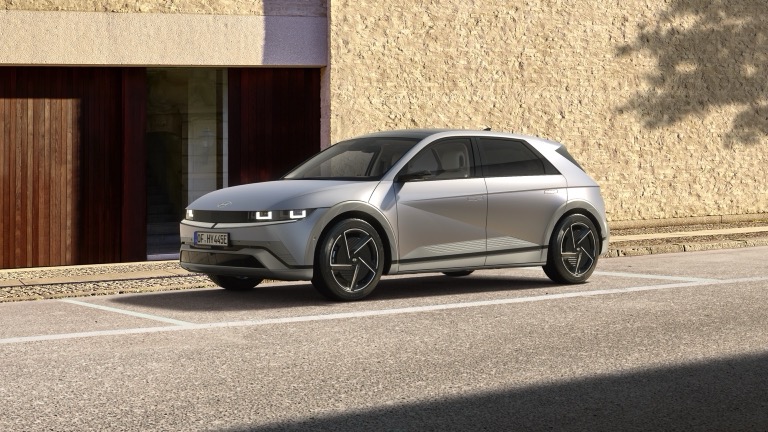

Hyundai IONIQ 5 63 kWh RWD(MY24)
Hyundai logo
Hyundai

Hyundai IONIQ 5 63 kWh RWD(MY24)

Available SUV RWD
43.900 € $47,412£37,315
345 km214 mi
Range
60
kWh
8.5s
0-100
125
kW

Performance

Power 125 kW (170 hp)
Torque 350 Nm
Acceleration 0-100 km/h 8.5 s
Top Speed 185 km/h115 mph
Drive Type RWD
Electric Range (WLTP) 345 km214 mi

Battery

Battery Capacity (usable) 60 kWh
Battery Capacity (nominal) 63.0 kWh
Battery Type Lithium-ion
Cathode Material NMC
Architecture 800 V
Nominal Voltage 520 V
Number of Cells 288
Pack Configuration 144s2p
Form Factor Pouch
Warranty 8 years / 160,000 km99 mi

Real Range

City (Winter -10°C) 340 km211 mi
Highway (Winter -10°C) 245 km152 mi
Combined (Winter -10°C) 290 km180 mi
City (Summer 23°C) 510 km317 mi
Highway (Summer 23°C) 315 km196 mi
Combined (Summer 23°C) 395 km245 mi

Real Energy Consumption

City (Winter -10°C) 176 Wh/km283 Wh/mi
Highway (Winter -10°C) 245 Wh/km394 Wh/mi
Combined (Winter -10°C) 207 Wh/km333 Wh/mi
City (Summer 23°C) 118 Wh/km190 Wh/mi
Highway (Summer 23°C) 190 Wh/km306 Wh/mi
Combined (Summer 23°C) 152 Wh/km245 Wh/mi

Energy Consumption

EVDB Range 345 km214 mi
EVDB Vehicle Consumption 174 Wh/km280 Wh/mi
Fuel Equivalent (vehicle) 2.0 l/100km

Bidirectional Charging (V2X / BPT)

V2L (Vehicle-to-Load) Yes
V2L Max Power 3.6 kW AC
V2H AC (Vehicle-to-Home) No
V2H DC (Vehicle-to-Home) No
V2G AC (Vehicle-to-Grid) No
V2G DC (Vehicle-to-Grid) No

Dimensions & Weight

Length 4655 mm183.3 in
Width 2152 mm84.7 in
Width (with mirrors) 2152 mm84.7 in
Height 1605 mm63.2 in
Wheelbase 3000 mm118.1 in
Weight 1,955 kg4,310 lbs
Gross Vehicle Weight (GVWR) 2470 kg5,445 lbs
Max Payload 590 kg1,301 lbs
Cargo Volume 520 L18.4 cu ft
Cargo Volume (max) 1580 L55.8 cu ft
Frunk Volume 57 L2.0 cu ft
Roof Load 80 kg176 lbs
Tow Hitch Yes
Towing Capacity (unbraked) 750 kg1,653 lbs
Towing Capacity (braked) 750 kg1,653 lbs
Max Vertical Load 100 kg220 lbs

Miscellaneous

Seats 5 people
Isofix Yes, 2 seats
Turning Circle 12 m39.4 ft
Platform HMG E-GMP
EV Platform Yes
Body Type SUV
Segment JC - Medium
Roof Rails No
Heat Pump Yes
Heat Pump (Standard) Varies by country

Safety (Euro NCAP)

Rating 5 ★ (2021)
Adult Occupant 88%
Child Occupant 86%
Vulnerable Road Users 63%
Safety Assist 88%

Home Charging (0 → 100%)

Charge Port Type 2
Port Location Right Side - Rear
Charge Power 11 kW AC
Charge Time 6h30m
Charge Speed 54 km/h34 mph

DC Fast Charging (10 → 80%)

Charge Port CCS
Port Location Right Side - Rear
Max. Power 195 kW DC
Avg. Power (10-80%) 150 kW DC
Charge Time 6h30m
Charge Speed 54 km/h34 mph
Autocharge Yes
Charge 20-80% 11 min
Charge 10-90% 15 min

Plug & Charge

Supported Announced
Protocol ISO 15118-2

Battery Preconditioning

Preconditioning Yes
Auto via Navigation Yes

Range Estimation

575 km357 mi
City
345 km214 mi
Combined (WLTP)
246 km153 mi
Highway

Real-World Range

245 km152 mi 510 km317 mi

Efficiency: 174 Wh/km280 Wh/mi

Real-world range varies based on temperature, speed, driving style, and terrain.

Long Distance Rating

2.5/ 5.0
Good

This rating considers:

  • Real highway range (WLTP: 345 km214 mi)
  • Charging speed and charging time
  • Vehicle efficiency

Quick Overview

  • Brand Hyundai
  • WLTP Range 345 km214 mi
  • Battery Capacity 60 kWh
  • DC Fast Charging 195 kW
  • Towing Capacity 750 kg1,653 lbs
  • Release Date 7/1/2024
  • Last Updated 5/20/2026
