Abarth 500e Hatchback
Abarth logo
Abarth

Abarth 500e Hatchback

Available Hatchback FWD
37.990 € $41,029£32,292
WLTP Range
225 km140 mi
Net Battery
37.3 kWh
0-100 km/h
7s
Peak Power
114 kW
A day with this car
DC 10–80%
25 min
85 kW peak · 65 kW avg
Home wallbox
4h
11 kW AC · 0–100% overnight
Winter highway
162 km101 mi
Cold, 120 km/h class
Charge ports
CCS
Type 2 · right rear

One-stop highway day · 246 km153 mi in 2h 29min

159 km99 mi
1h 27min
15 min
charge
87 km54 mi
47min
WLTP Range
225 km140 mi
Official Combined
Usable Battery
37.3 kWh
42.0 kWh Gross
Peak Power
114 kW
153 hp
0-100 km/h
7 s
Max: 155 km/h96 mph
DC Fast Peak
85 kW
High-Power DC

Performance & Powertrain

FWD Dedicated EV Platform
Total System Power 114 kW (153 hp)
Total System Torque 235 Nm
0-100 km/h Sprint 7 s
Top Speed 155 km/h96 mph
Drivetrain Configuration FWD
Platform Code STLA City

Battery Engineering & Chemistry

400 V NMC
Usable Battery Capacity 37.3 kWh
Nominal Battery Capacity 42.0 kWh
Battery Type Lithium-ion
Cell Form Factor Prismatic
Nominal Voltage 355 V
Total Cell Count 192
Pack Configuration 96s2p
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Frunk: 0 L0.0 cu ft
Boot Cargo Volume 185 L6.5 cu ft
Max Cargo (Seats Down) 550 L19.4 cu ft
Front Trunk (Frunk) 0 L0.0 cu ft
Unladen Curb Weight 1,410 kg3,109 lbs
Overall Length 3673 mm144.6 in
Width (with mirrors) 1900 mm74.8 in
Overall Height 1518 mm59.8 in
Wheelbase 2322 mm91.4 in
0
Towing Capacity (Unbraked) 0 kg0 lbs
Gross Vehicle Weight (GVWR) 1720 kg3,792 lbs
Max Payload Capacity 385 kg849 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 4 people seats
Isofix Anchor Points No Data
Turning Circle 9.4 m30.8 ft
Market Segment B - Compact
Roof Rails No
Heat Pump No

Estimated Range by Weather & Road

Efficiency: 166 Wh/km267 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 65% for cold motorway driving, 115% for mild city driving). Your range depends on speed, wheels, load and heating. For a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 146 km91 mi | Mild Urban: 259 km161 mi
Worst-Case Winter Highway WLTP Lab: 225 km140 mi Best-Case Mild Urban
❄️ Cold Winter (-10°C)
Cabin Heat On
City Driving
Urban stop-and-go
167 km104 mi
Highway Cruising
Motorway speeds
146 km91 mi
Combined Cycle
Everyday winter commute
158 km98 mi
☀️ Mild Summer (23°C)
Optimal Temperature
City Driving
Peak regen recovery
259 km161 mi
Highway Cruising
Motorway speeds
185 km115 mi
Combined Cycle
Ideal mixed-use range
216 km134 mi

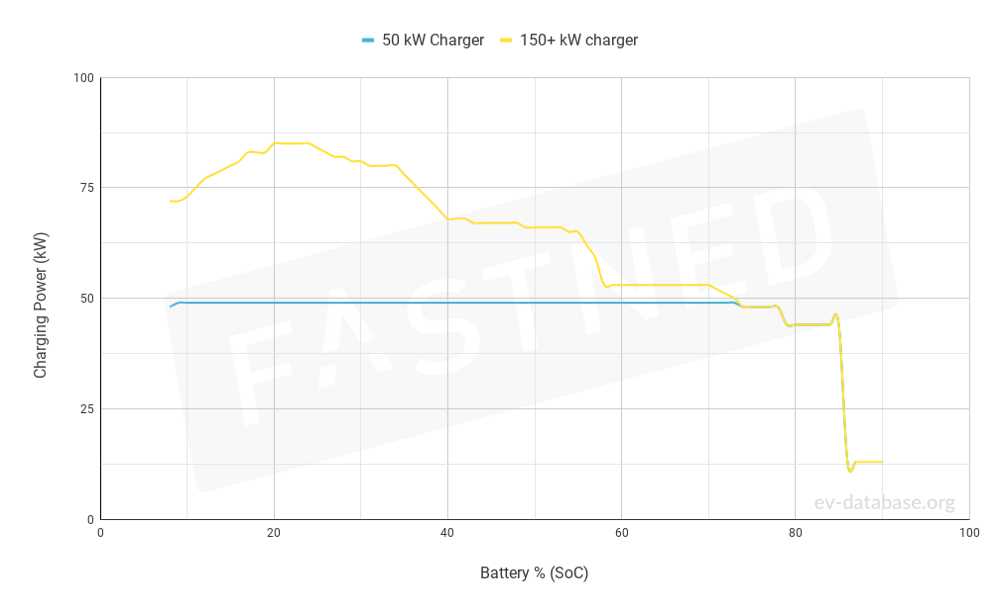

High-Power Road Trips

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
85 kW DC
Maximum Power
10-80% Session
25 min
Typical Road Stop
Average Power
65 kW DC
Sustained Rate
Range Added
370 km/h230 mph
Added per Hour
Plug & Charge (ISO 15118) No
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
4 hours
Full Overnight Charge
Charge Speed
56 km/h35 mph
Range per Hour
Port Location
Right Side - Rear
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
1.0/ 5.0
Urban Focused / Frequent Charging Stops

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (225 km140 mi).

Vehicle Overview

  • Manufacturer Abarth
  • WLTP Range 225 km140 mi
  • Net Battery 37.3 kWh
  • DC Fast Charging 85 kW
  • Towing Capacity No Towing
  • Market Availability Available
  • Release Date 5/1/2023
  • Telemetry Verified 5/23/2026
Frequently Asked Questions

Abarth 500e Hatchback Range & Charging FAQ

What is the real-world highway and winter range of the Abarth 500e Hatchback?

The official combined WLTP range for the Abarth 500e Hatchback is 225 km (140 miles).

In cold winter conditions (-5°C / 23°F) at highway cruising speeds (120-130 km/h), expect a realistic highway range of approximately 162 km (101 miles) due to cold battery chemistry, cabin heating, and higher aerodynamic drag.

How long does it take to charge the Abarth 500e Hatchback at home?

Charging the 37.3 kWh battery from 0% to 100% takes approximately 3.1 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 4.5 hours (typically overnight).

How fast is DC fast charging (10% to 80%)?

The Abarth 500e Hatchback supports peak DC fast charging rates of up to 85 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 26 minutes at a compatible ultra-rapid charging station.

How much does it cost to charge the Abarth 500e Hatchback?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €8.95. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €24.24.
