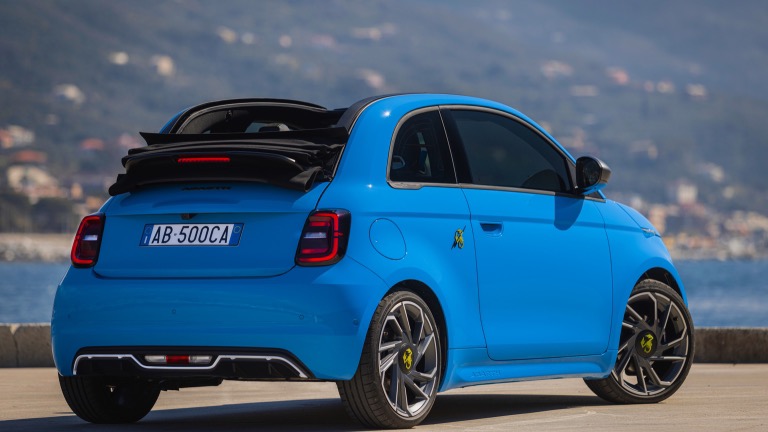

Abarth 500e Convertible
Abarth logo
Abarth

Abarth 500e Convertible

Available Hatchback FWD
40.990 € $44,269£34,842
225 km140 mi
Range
37.3
kWh
7s
0-100
114
kW

Performance

Power 114 kW (155 hp)
Torque 235 Nm
Acceleration 0-100 km/h 7 s
Top Speed 155 km/h96 mph
Drive Type FWD
Electric Range (WLTP) 225 km140 mi

Battery

Battery Capacity (usable) 37.3 kWh
Battery Capacity (nominal) 42.0 kWh
Battery Type Lithium-ion
Cathode Material NMC
Architecture 400 V
Nominal Voltage 355 V
Number of Cells 192
Pack Configuration 96s2p
Form Factor Prismatic
Warranty 8 years / 160,000 km99 mi

Real Range

City (Winter -10°C) 220 km137 mi
Highway (Winter -10°C) 155 km96 mi
Combined (Winter -10°C) 190 km118 mi
City (Summer 23°C) 335 km208 mi
Highway (Summer 23°C) 200 km124 mi
Combined (Summer 23°C) 255 km158 mi

Real Energy Consumption

City (Winter -10°C) 170 Wh/km274 Wh/mi
Highway (Winter -10°C) 241 Wh/km388 Wh/mi
Combined (Winter -10°C) 196 Wh/km315 Wh/mi
City (Summer 23°C) 111 Wh/km179 Wh/mi
Highway (Summer 23°C) 187 Wh/km301 Wh/mi
Combined (Summer 23°C) 146 Wh/km235 Wh/mi

Energy Consumption

EVDB Range 225 km140 mi
EVDB Vehicle Consumption 166 Wh/km267 Wh/mi
Fuel Equivalent (vehicle) 1.9 l/100km

Bidirectional Charging (V2X / BPT)

V2L (Vehicle-to-Load) No
V2H AC (Vehicle-to-Home) No
V2H DC (Vehicle-to-Home) No
V2G AC (Vehicle-to-Grid) No
V2G DC (Vehicle-to-Grid) No

Dimensions & Weight

Length 3673 mm144.6 in
Width 1900 mm74.8 in
Width (with mirrors) 1900 mm74.8 in
Height 1518 mm59.8 in
Wheelbase 2322 mm91.4 in
Weight 1,435 kg3,164 lbs
Gross Vehicle Weight (GVWR) 1730 kg3,814 lbs
Max Payload 370 kg816 lbs
Cargo Volume 185 L6.5 cu ft
Cargo Volume (max) 550 L19.4 cu ft
Frunk Volume 0 L0.0 cu ft
Tow Hitch No
Towing Capacity (unbraked) 0 kg0 lbs
Towing Capacity (braked) 0 kg0 lbs
Max Vertical Load 0 kg0 lbs

Miscellaneous

Seats 4 people
Turning Circle 9.4 m30.8 ft
Platform STLA City
EV Platform No
Body Type Hatchback
Segment B - Compact
Roof Rails No
Heat Pump No

Home Charging (0 → 100%)

Charge Port Type 2
Port Location Right Side - Rear
Charge Power 11 kW AC
Charge Time 4 hours
Charge Speed 56 km/h35 mph

DC Fast Charging (10 → 80%)

Charge Port CCS
Port Location Right Side - Rear
Max. Power 85 kW DC
Avg. Power (10-80%) 65 kW DC
Charge Time 4 hours
Charge Speed 56 km/h35 mph
Autocharge Yes
Charge 20-80% 16 min
Charge 10-90% 21 min

Plug & Charge

Supported No

Battery Preconditioning

Preconditioning No
Auto via Navigation No

Range Estimation

374 km232 mi
City
225 km140 mi
Combined (WLTP)
160 km99 mi
Highway

Real-World Range

155 km96 mi 335 km208 mi

Efficiency: 166 Wh/km267 Wh/mi

Real-world range varies based on temperature, speed, driving style, and terrain.

Long Distance Rating

1.0/ 5.0
Below Average

This rating considers:

  • Real highway range (WLTP: 225 km140 mi)
  • Charging speed and charging time
  • Vehicle efficiency

Quick Overview

  • Brand Abarth
  • WLTP Range 225 km140 mi
  • Battery Capacity 37.3 kWh
  • DC Fast Charging 85 kW
  • Towing Capacity No Towing
  • Release Date 5/1/2023
  • Last Updated 5/23/2026
