Volvo XC40 Recharge Single Motor(MY24)
Volvo logo
Volvo

Volvo XC40 Recharge Single Motor(MY24)

Available SUV RWD
47.500 € $51,300£40,375
340 km211 mi
Range
66
kWh
7.3s
0-100
175
kW

Performance

Power 175 kW (238 hp)
Torque 420 Nm
Acceleration 0-100 km/h 7.3 s
Top Speed 180 km/h112 mph
Drive Type RWD
Electric Range (WLTP) 340 km211 mi

Battery

Battery Capacity (usable) 66 kWh
Battery Capacity (nominal) 69.0 kWh
Battery Type Lithium-ion
Cathode Material NMC
Architecture 400 V
Nominal Voltage 355 V
Number of Cells 288
Pack Configuration 96s3p
Form Factor Pouch
Warranty 8 years / 160,000 km99 mi

Real Range

City (Winter -10°C) 345 km214 mi
Highway (Winter -10°C) 240 km149 mi
Combined (Winter -10°C) 290 km180 mi
City (Summer 23°C) 505 km314 mi
Highway (Summer 23°C) 305 km190 mi
Combined (Summer 23°C) 385 km239 mi

Real Energy Consumption

City (Winter -10°C) 191 Wh/km307 Wh/mi
Highway (Winter -10°C) 275 Wh/km443 Wh/mi
Combined (Winter -10°C) 228 Wh/km367 Wh/mi
City (Summer 23°C) 131 Wh/km211 Wh/mi
Highway (Summer 23°C) 216 Wh/km348 Wh/mi
Combined (Summer 23°C) 171 Wh/km275 Wh/mi

Energy Consumption

EVDB Range 340 km211 mi
EVDB Vehicle Consumption 194 Wh/km312 Wh/mi
Fuel Equivalent (vehicle) 2.2 l/100km

Bidirectional Charging (V2X / BPT)

V2L (Vehicle-to-Load) No
V2H AC (Vehicle-to-Home) No
V2H DC (Vehicle-to-Home) No
V2G AC (Vehicle-to-Grid) No
V2G DC (Vehicle-to-Grid) No

Dimensions & Weight

Length 4440 mm174.8 in
Width 2034 mm80.1 in
Width (with mirrors) 2034 mm80.1 in
Height 1651 mm65.0 in
Wheelbase 2702 mm106.4 in
Weight 2,040 kg4,497 lbs
Gross Vehicle Weight (GVWR) 2470 kg5,445 lbs
Max Payload 505 kg1,113 lbs
Cargo Volume 410 L14.5 cu ft
Cargo Volume (max) 1286 L45.4 cu ft
Frunk Volume 31 L1.1 cu ft
Roof Load 75 kg165 lbs
Tow Hitch Yes
Towing Capacity (unbraked) 750 kg1,653 lbs
Towing Capacity (braked) 1,500 kg3,307 lbs
Max Vertical Load 100 kg220 lbs

Miscellaneous

Seats 5 people
Isofix Yes, 2 seats
Turning Circle 11.4 m37.4 ft
Platform Geely CMA
EV Platform No
Body Type SUV
Segment JC - Medium
Roof Rails Yes
Heat Pump Yes
Heat Pump (Standard) Varies by country

Home Charging (0 → 100%)

Charge Port Type 2
Port Location Left Side - Rear
Charge Power 11 kW AC
Charge Time 7h15m
Charge Speed 48 km/h30 mph

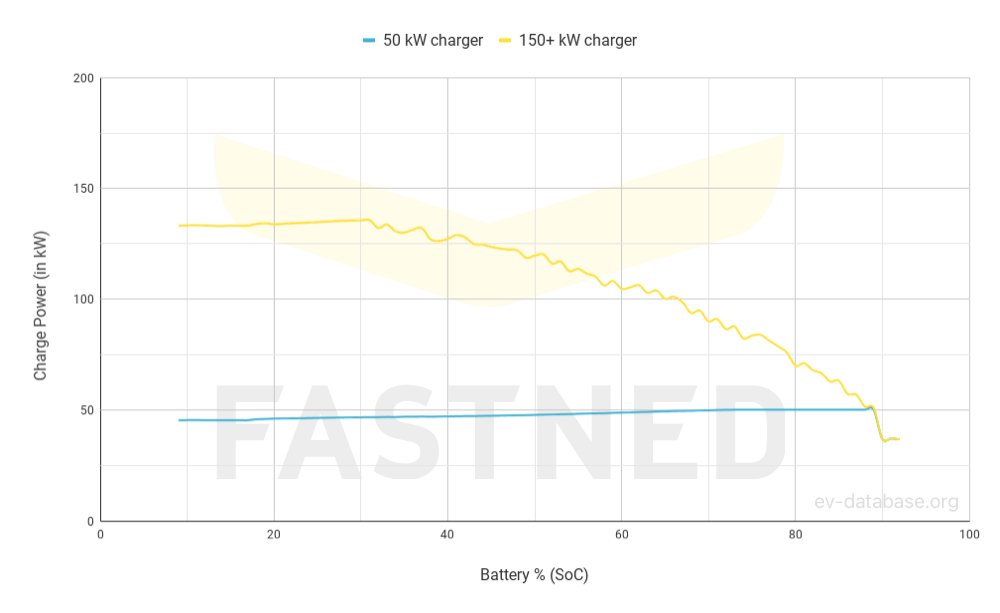

DC Fast Charging (10 → 80%)

Charge Port CCS
Port Location Left Side - Rear
Max. Power 136 kW DC
Avg. Power (10-80%) 113 kW DC
Charge Time 7h15m
Charge Speed 48 km/h30 mph
Autocharge Yes
Charge 20-80% 17 min
Charge 10-90% 23 min

Plug & Charge

Supported No

Battery Preconditioning

Preconditioning Yes
Auto via Navigation Yes

Range Estimation

567 km352 mi
City
340 km211 mi
Combined (WLTP)
243 km151 mi
Highway

Real-World Range

240 km149 mi 505 km314 mi

Efficiency: 194 Wh/km312 Wh/mi

Real-world range varies based on temperature, speed, driving style, and terrain.

Long Distance Rating

2.0/ 5.0
Average

This rating considers:

  • Real highway range (WLTP: 340 km211 mi)
  • Charging speed and charging time
  • Vehicle efficiency

Quick Overview

  • Brand Volvo
  • WLTP Range 340 km211 mi
  • Battery Capacity 66 kWh
  • DC Fast Charging 136 kW
  • Towing Capacity 1,500 kg3,307 lbs
  • Release Date 12/1/2022
  • Last Updated 5/23/2026
