Volvo XC40 P8 AWD Recharge(MY21)
Volvo logo
Volvo

Volvo XC40 P8 AWD Recharge(MY21)

Available SUV AWD
60.437 € $65,272£51,371
335 km208 mi
Range
75
kWh
4.9s
0-100
300
kW

Performance

Power 300 kW (408 hp)
Torque 660 Nm
Acceleration 0-100 km/h 4.9 s
Top Speed 180 km/h112 mph
Drive Type AWD
Electric Range (WLTP) 335 km208 mi

Battery

Battery Capacity (usable) 75 kWh
Battery Capacity (nominal) 78.0 kWh
Battery Type Lithium-ion
Cathode Material NMC
Architecture 400 V
Nominal Voltage 400 V
Number of Cells 324
Pack Configuration 108s3p
Form Factor Pouch
Warranty 8 years / 160,000 km99 mi

Real Range

City (Winter -10°C) 345 km214 mi
Highway (Winter -10°C) 235 km146 mi
Combined (Winter -10°C) 285 km177 mi
City (Summer 23°C) 490 km304 mi
Highway (Summer 23°C) 295 km183 mi
Combined (Summer 23°C) 375 km233 mi

Bidirectional Charging (V2X / BPT)

V2L (Vehicle-to-Load) No
V2H AC (Vehicle-to-Home) No
V2H DC (Vehicle-to-Home) No
V2G AC (Vehicle-to-Grid) No
V2G DC (Vehicle-to-Grid) No

Dimensions & Weight

Length 4425 mm174.2 in
Width 2034 mm80.1 in
Width (with mirrors) 2034 mm80.1 in
Height 1651 mm65.0 in
Wheelbase 2702 mm106.4 in
Weight 2,188 kg4,824 lbs
Gross Vehicle Weight (GVWR) 2650 kg5,842 lbs
Max Payload 537 kg1,184 lbs
Cargo Volume 419 L14.8 cu ft
Cargo Volume (max) 1295 L45.7 cu ft
Frunk Volume 31 L1.1 cu ft
Roof Load 75 kg165 lbs
Tow Hitch Yes
Towing Capacity (unbraked) 750 kg1,653 lbs
Towing Capacity (braked) 1,500 kg3,307 lbs
Max Vertical Load 90 kg198 lbs

Miscellaneous

Seats 5 people
Isofix Yes, 2 seats
Turning Circle 11.4 m37.4 ft
Platform Geely CMA
EV Platform No
Body Type SUV
Segment JC - Medium
Roof Rails Yes
Heat Pump Yes
Heat Pump (Standard) No, optional

Home Charging (0 → 100%)

Charge Port Type 2
Port Location Left Side - Rear
Charge Power 11 kW AC
Charge Time 8h15m
Charge Speed 42 km/h26 mph

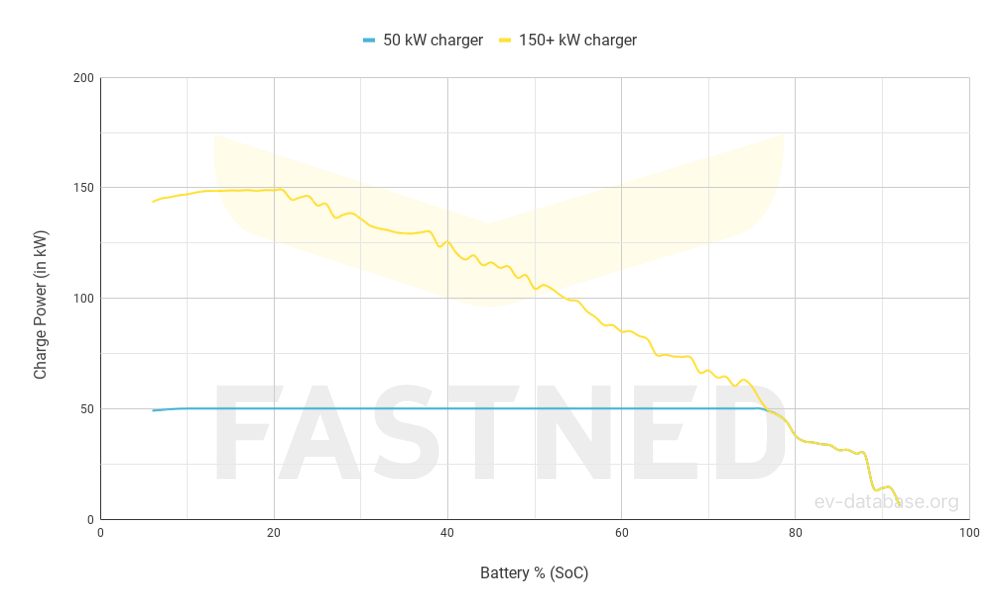

DC Fast Charging (10 → 80%)

Charge Port CCS
Port Location Left Side - Rear
Max. Power 149 kW DC
Avg. Power (10-80%) 97 kW DC
Charge Time 8h15m
Charge Speed 42 km/h26 mph
Autocharge Yes
Charge 20-80% 18 min
Charge 10-90% 24 min

Plug & Charge

Supported No

Battery Preconditioning

Preconditioning Yes
Auto via Navigation Yes

Range Estimation

523 km325 mi
City
335 km208 mi
Combined (WLTP)
224 km139 mi
Highway

Real-World Range

235 km146 mi 490 km304 mi

Efficiency: 239 Wh/km385 Wh/mi

Real-world range varies based on temperature, speed, driving style, and terrain.

Long Distance Rating

2.0/ 5.0
Average

This rating considers:

  • Real highway range (WLTP: 335 km208 mi)
  • Charging speed and charging time
  • Vehicle efficiency

Quick Overview

  • Brand Volvo
  • WLTP Range 335 km208 mi
  • Battery Capacity 75 kWh
  • DC Fast Charging 149 kW
  • Towing Capacity 1,500 kg3,307 lbs
  • Release Date 2/1/2020
  • Last Updated 5/26/2026
