EVSTATS Logo

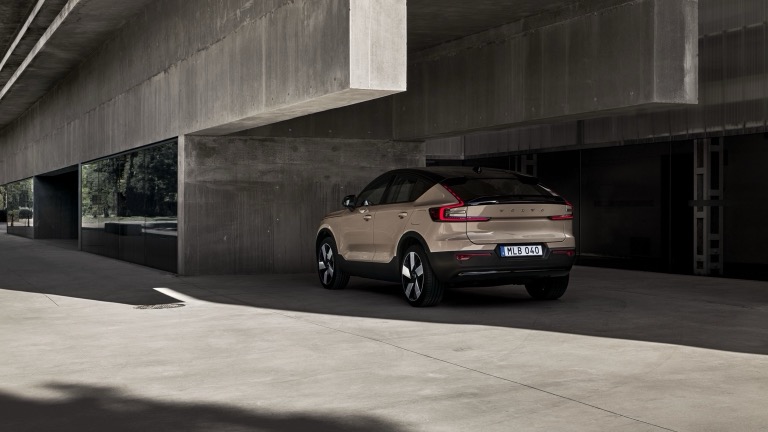

Volvo EC40 Single Motor(MY25)
Volvo logo
Volvo

Volvo EC40 Single Motor(MY25)

Available SUV RWD
52.690 € $56,905£44,787
360 km224 mi
Range
67
kWh
7.3s
0-100
175
kW

Performance

Power 175 kW (238 hp)
Torque 420 Nm
Acceleration 0-100 km/h 7.3 s
Top Speed 180 km/h112 mph
Drive Type RWD
Electric Range (WLTP) 360 km224 mi

Battery

Battery Capacity (usable) 67 kWh
Battery Capacity (nominal) 70.0 kWh
Battery Type Lithium-ion
Cathode Material NMC
Architecture 400 V
Form Factor Prismatic
Warranty 8 years / 160,000 km99 mi

Real Range

City (Winter -10°C) 360 km224 mi
Highway (Winter -10°C) 255 km158 mi
Combined (Winter -10°C) 305 km190 mi
City (Summer 23°C) 530 km329 mi
Highway (Summer 23°C) 325 km202 mi
Combined (Summer 23°C) 410 km255 mi

Real Energy Consumption

City (Winter -10°C) 186 Wh/km299 Wh/mi
Highway (Winter -10°C) 263 Wh/km423 Wh/mi
Combined (Winter -10°C) 220 Wh/km354 Wh/mi
City (Summer 23°C) 126 Wh/km203 Wh/mi
Highway (Summer 23°C) 206 Wh/km332 Wh/mi
Combined (Summer 23°C) 163 Wh/km262 Wh/mi

Energy Consumption

EVDB Range 360 km224 mi
EVDB Vehicle Consumption 186 Wh/km299 Wh/mi
Fuel Equivalent (vehicle) 2.1 l/100km

Bidirectional Charging (V2X / BPT)

V2L (Vehicle-to-Load) No
V2H AC (Vehicle-to-Home) No
V2H DC (Vehicle-to-Home) No
V2G AC (Vehicle-to-Grid) No
V2G DC (Vehicle-to-Grid) No

Dimensions & Weight

Length 4440 mm174.8 in
Width 2034 mm80.1 in
Width (with mirrors) 2034 mm80.1 in
Height 1596 mm62.8 in
Wheelbase 2702 mm106.4 in
Weight 2,057 kg4,535 lbs
Gross Vehicle Weight (GVWR) 2460 kg5,423 lbs
Max Payload 478 kg1,054 lbs
Cargo Volume 404 L14.3 cu ft
Cargo Volume (max) 1196 L42.2 cu ft
Frunk Volume 31 L1.1 cu ft
Roof Load 75 kg165 lbs
Tow Hitch Yes
Towing Capacity (unbraked) 750 kg1,653 lbs
Towing Capacity (braked) 1,500 kg3,307 lbs
Max Vertical Load 100 kg220 lbs

Miscellaneous

Seats 5 people
Isofix Yes, 2 seats
Turning Circle 11.4 m37.4 ft
Platform Geely CMA
EV Platform No
Body Type SUV
Segment JC - Medium
Roof Rails Yes
Heat Pump Yes
Heat Pump (Standard) Varies by country

Home Charging (0 → 100%)

Charge Port Type 2
Port Location Left Side - Rear
Charge Power 11 kW AC
Charge Time 7h15m
Charge Speed 50 km/h31 mph

DC Fast Charging (10 → 80%)

Charge Port CCS
Port Location Left Side - Rear
Max. Power 180 kW DC
Avg. Power (10-80%) 100 kW DC
Charge Time 7h15m
Charge Speed 50 km/h31 mph
Autocharge Yes
Charge 20-80% 13 min
Charge 10-90% 18 min

Plug & Charge

Supported No

Battery Preconditioning

Preconditioning Yes
Auto via Navigation Yes

Range Estimation

600 km373 mi
City
360 km224 mi
Combined (WLTP)
257 km160 mi
Highway

Real-World Range

255 km158 mi 530 km329 mi

Efficiency: 186 Wh/km299 Wh/mi

Real-world range varies based on temperature, speed, driving style, and terrain.

Long Distance Rating

2.5/ 5.0
Good

This rating considers:

  • Real highway range (WLTP: 360 km224 mi)
  • Charging speed and charging time
  • Vehicle efficiency

Quick Overview

  • Brand Volvo
  • WLTP Range 360 km224 mi
  • Battery Capacity 67 kWh
  • DC Fast Charging 180 kW
  • Towing Capacity 1,500 kg3,307 lbs
  • Release Date 2/1/2024
  • Last Updated 5/21/2026
