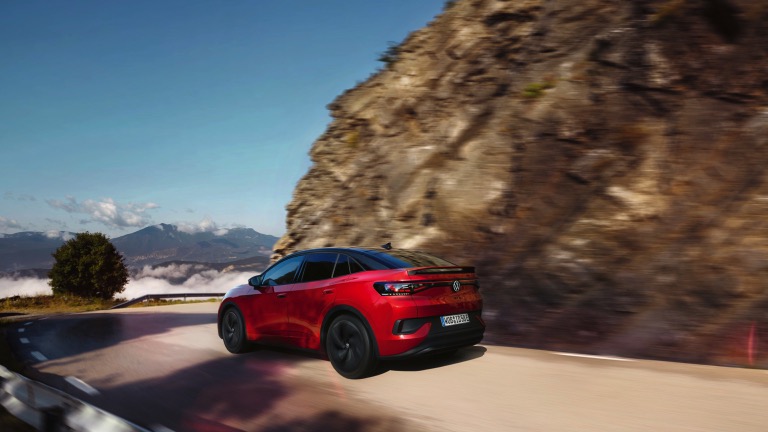

Volkswagen ID.5 GTX
Volkswagen logo
Volkswagen

Volkswagen ID.5 GTX

Available SUV AWD
56.455 € $60,971£47,987
405 km252 mi
Range
77
kWh
6.3s
0-100
220
kW

Performance

Power 220 kW (299 hp)
Torque 460 Nm
Acceleration 0-100 km/h 6.3 s
Top Speed 180 km/h112 mph
Drive Type AWD
Electric Range (WLTP) 405 km252 mi

Battery

Battery Capacity (usable) 77 kWh
Battery Capacity (nominal) 82.0 kWh
Battery Type Lithium-ion
Cathode Material NMC
Architecture 400 V
Nominal Voltage 352 V
Number of Cells 288
Pack Configuration 96s3p
Warranty 8 years / 160,000 km99 mi

Real Range

City (Winter -10°C) 400 km249 mi
Highway (Winter -10°C) 295 km183 mi
Combined (Winter -10°C) 345 km214 mi
City (Summer 23°C) 590 km367 mi
Highway (Summer 23°C) 375 km233 mi
Combined (Summer 23°C) 465 km289 mi

Bidirectional Charging (V2X / BPT)

V2L (Vehicle-to-Load) No
V2H AC (Vehicle-to-Home) No
V2H DC (Vehicle-to-Home) Announced
V2G AC (Vehicle-to-Grid) No
V2G DC (Vehicle-to-Grid) Announced

Dimensions & Weight

Length 4599 mm181.1 in
Width 2108 mm83.0 in
Width (with mirrors) 2108 mm83.0 in
Height 1615 mm63.6 in
Wheelbase 2771 mm109.1 in
Weight 2,243 kg4,945 lbs
Gross Vehicle Weight (GVWR) 2750 kg6,063 lbs
Max Payload 582 kg1,283 lbs
Cargo Volume 549 L19.4 cu ft
Cargo Volume (max) 1561 L55.1 cu ft
Frunk Volume 0 L0.0 cu ft
Roof Load 0 kg0 lbs
Tow Hitch Yes
Towing Capacity (unbraked) 750 kg1,653 lbs
Towing Capacity (braked) 1,200 kg2,646 lbs
Max Vertical Load 75 kg165 lbs

Miscellaneous

Seats 5 people
Isofix Yes, 3 seats
Turning Circle 11.6 m38.1 ft
Platform VAG MEB
EV Platform Yes
Body Type SUV
Segment JC - Medium
Roof Rails Yes
Heat Pump Yes
Heat Pump (Standard) No, optional

Safety (Euro NCAP)

Rating 5 ★ (2021)
Adult Occupant 93%
Child Occupant 89%
Vulnerable Road Users 76%
Safety Assist 85%

Home Charging (0 → 100%)

Charge Port Type 2
Port Location Right Side - Rear
Charge Power 11 kW AC
Charge Time 8h15m
Charge Speed 49 km/h30 mph

DC Fast Charging (10 → 80%)

Charge Port CCS
Port Location Right Side - Rear
Max. Power 175 kW DC
Avg. Power (10-80%) 103 kW DC
Charge Time 8h15m
Charge Speed 49 km/h30 mph
Autocharge No
Charge 20-80% 16 min
Charge 10-90% 21 min

Plug & Charge

Supported Yes
Protocol ISO 15118-2

Battery Preconditioning

Preconditioning No
Auto via Navigation No

Range Estimation

759 km472 mi
City
405 km252 mi
Combined (WLTP)
325 km202 mi
Highway

Real-World Range

295 km183 mi 590 km367 mi

Efficiency: 169 Wh/km272 Wh/mi

Real-world range varies based on temperature, speed, driving style, and terrain.

Long Distance Rating

2.5/ 5.0
Good

This rating considers:

  • Real highway range (WLTP: 405 km252 mi)
  • Charging speed and charging time
  • Vehicle efficiency

Quick Overview

  • Brand Volkswagen
  • WLTP Range 405 km252 mi
  • Battery Capacity 77 kWh
  • DC Fast Charging 175 kW
  • Towing Capacity 1,200 kg2,646 lbs
  • Release Date 7/1/2022
  • Last Updated 5/23/2026
