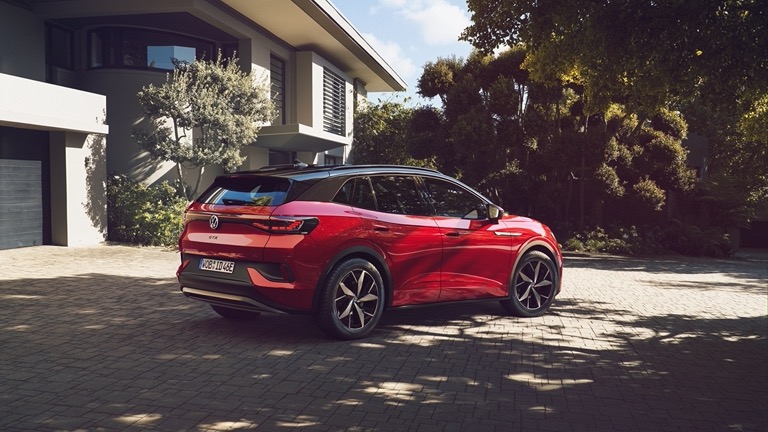

Volkswagen ID.4 GTX
Volkswagen logo
Volkswagen

Volkswagen ID.4 GTX

Available SUV AWD
50.415 € $54,448£42,853
WLTP Range
400 km249 mi
Net Battery
77 kWh
0-100 km/h
6.2s
Peak Power
220 kW
A day with this car
DC 10–80%
33 min
175 kW peak · 103 kW avg
Home wallbox
8h 15m
11 kW AC · 0–100% overnight
Winter highway
288 km179 mi
Cold, 120 km/h class
Charge ports
CCS
Type 2 · right rear

One-stop highway day · 425 km264 mi in 4h 7min

288 km179 mi
2h 37min
15 min
charge
137 km85 mi
1h 15min
WLTP Range
400 km249 mi
Official Combined
Usable Battery
77 kWh
82.0 kWh Gross
Peak Power
220 kW
295 hp
0-100 km/h
6.2 s
Max: 180 km/h112 mph
DC Fast Peak
175 kW
High-Power DC

Performance & Powertrain

AWD Dedicated EV Platform
Total System Power 220 kW (295 hp)
Total System Torque 460 Nm
0-100 km/h Sprint 6.2 s
Top Speed 180 km/h112 mph
Drivetrain Configuration AWD
Platform Code VAG MEB

Battery Engineering & Chemistry

400 V NMC
Usable Battery Capacity 77 kWh
Nominal Battery Capacity 82.0 kWh
Battery Type Lithium-ion
Cell Form Factor No Data
Nominal Voltage 352 V
Total Cell Count 288
Pack Configuration 96s3p
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Towing: 1200 kg Frunk: 0 L0.0 cu ft
Boot Cargo Volume 543 L19.2 cu ft
Max Cargo (Seats Down) 1575 L55.6 cu ft
Front Trunk (Frunk) 0 L0.0 cu ft
Unladen Curb Weight 2,224 kg4,903 lbs
Overall Length 4584 mm180.5 in
Width (with mirrors) No Data
Overall Height 1631 mm64.2 in
Wheelbase 2771 mm109.1 in
Towing Capacity (Braked) 1,200 kg2,646 lbs
Towing Capacity (Unbraked) 750 kg1,653 lbs
Gross Vehicle Weight (GVWR) 2750 kg6,063 lbs
Max Payload Capacity 601 kg1,325 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 5 people seats
Isofix Anchor Points Yes, 3 seats
Turning Circle 11.5 m37.7 ft
Market Segment JC - Medium
Roof Rails Yes
Heat Pump Standard Equipment

Euro NCAP Safety Assessment

★★★★★ 5 Stars (2021)
Adult Occupant Protection 93%
Child Occupant Protection 89%
Vulnerable Road Users (Pedestrians) 76%
Active Safety Assist Systems 85%

Estimated Range by Weather & Road

Efficiency: 179 Wh/km288 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 65% for cold motorway driving, 115% for mild city driving). Your range depends on speed, wheels, load and heating. For a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 260 km162 mi | Mild Urban: 460 km286 mi
Worst-Case Winter Highway WLTP Lab: 400 km249 mi Best-Case Mild Urban
❄️ Cold Winter (-10°C)
Cabin Heat On
City Driving
Urban stop-and-go
296 km184 mi
Highway Cruising
Motorway speeds
260 km162 mi
Combined Cycle
Everyday winter commute
280 km174 mi
☀️ Mild Summer (23°C)
Optimal Temperature
City Driving
Peak regen recovery
460 km286 mi
Highway Cruising
Motorway speeds
328 km204 mi
Combined Cycle
Ideal mixed-use range
384 km239 mi
High-Power Road Trips

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
175 kW DC
Maximum Power
10-80% Session
33 min
Typical Road Stop
Average Power
103 kW DC
Sustained Rate
Range Added
500 km/h311 mph
Added per Hour
Plug & Charge (ISO 15118) Yes
Battery Preconditioning Auto via Nav
Autocharge Protocol No
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
8h15m
Full Overnight Charge
Charge Speed
49 km/h30 mph
Range per Hour
Port Location
Right Side - Rear
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
2.5/ 5.0
Moderate Highway Feasibility

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (400 km249 mi).

Vehicle Overview

  • Manufacturer Volkswagen
  • WLTP Range 400 km249 mi
  • Net Battery 77 kWh
  • DC Fast Charging 175 kW
  • Towing Capacity 1,200 kg2,646 lbs
  • Market Availability Available
  • Release Date 6/1/2021
  • Telemetry Verified 5/25/2026
Frequently Asked Questions

Volkswagen ID.4 GTX Range & Charging FAQ

What is the real-world highway and winter range of the Volkswagen ID.4 GTX?

The official combined WLTP range for the Volkswagen ID.4 GTX is 400 km (249 miles).

In cold winter conditions (-5°C / 23°F) at highway cruising speeds (120-130 km/h), expect a realistic highway range of approximately 288 km (179 miles) due to cold battery chemistry, cabin heating, and higher aerodynamic drag.

How long does it take to charge the Volkswagen ID.4 GTX at home?

Charging the 77 kWh battery from 0% to 100% takes approximately 6.3 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 9.4 hours (typically overnight).

How fast is DC fast charging (10% to 80%)?

The Volkswagen ID.4 GTX supports peak DC fast charging rates of up to 175 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 26 minutes at a compatible ultra-rapid charging station.

How much does it cost to charge the Volkswagen ID.4 GTX?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €18.48. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €50.05.
