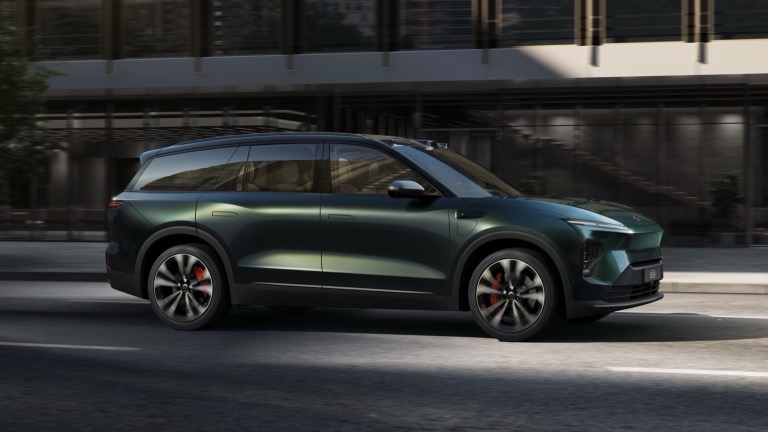

NIO EL8 Long Range
NIO logo
NIO

NIO EL8 Long Range

Available SUV AWD
103.900 € $112,212£88,315
WLTP Range
440 km273 mi
Net Battery
90 kWh
0-100 km/h
4.1s
Peak Power
480 kW
A day with this car
DC 10–80%
21 min
240 kW peak · 190 kW avg
Home wallbox
9h 45m
11 kW AC · 0–100% overnight
Winter highway
317 km197 mi
Cold, 120 km/h class
Charge ports
CCS
Type 2 · right front

One-stop highway day · 524 km326 mi in 5h 1min

322 km200 mi
2h 56min
15 min
charge
202 km126 mi
1h 50min
WLTP Range
440 km273 mi
Official Combined
Usable Battery
90 kWh
100.0 kWh Gross
Peak Power
480 kW
644 hp
0-100 km/h
4.1 s
Max: 200 km/h124 mph
DC Fast Peak
240 kW
High-Power DC

Performance & Powertrain

AWD Dedicated EV Platform
Total System Power 480 kW (644 hp)
Total System Torque 850 Nm
0-100 km/h Sprint 4.1 s
Top Speed 200 km/h124 mph
Drivetrain Configuration AWD
Platform Code NIO NT2

Battery Engineering & Chemistry

400 V NMC
Usable Battery Capacity 90 kWh
Nominal Battery Capacity 100.0 kWh
Battery Type Lithium-ion
Cell Form Factor No Data
Nominal Voltage No Data
Total Cell Count 96
Pack Configuration 96s1p
Manufacturer Battery Warranty No Data / No Data

Dimensions, Cargo & Towing

Towing: 2000 kg Frunk: 0 L0.0 cu ft
Boot Cargo Volume 265 L9.4 cu ft
Max Cargo (Seats Down) 810 L28.6 cu ft
Front Trunk (Frunk) 0 L0.0 cu ft
Unladen Curb Weight 2,633 kg5,805 lbs
Overall Length 5099 mm200.7 in
Width (with mirrors) 2199 mm86.6 in
Overall Height 1750 mm68.9 in
Wheelbase 3070 mm120.9 in
Towing Capacity (Braked) 2,000 kg4,409 lbs
Towing Capacity (Unbraked) 750 kg1,653 lbs
Gross Vehicle Weight (GVWR) 3190 kg7,033 lbs
Max Payload Capacity 632 kg1,393 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 6 people seats
Isofix Anchor Points Yes, 4 seats
Turning Circle 12.4 m40.7 ft
Market Segment JF - Luxury
Roof Rails Yes
Heat Pump Standard Equipment

Estimated Range by Weather & Road

Efficiency: 212 Wh/km341 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 65% for cold motorway driving, 115% for mild city driving). Your range depends on speed, wheels, load and heating. For a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 286 km178 mi | Mild Urban: 506 km314 mi
Worst-Case Winter Highway WLTP Lab: 440 km273 mi Best-Case Mild Urban
❄️ Cold Winter (-10°C)
Cabin Heat On
City Driving
Urban stop-and-go
326 km203 mi
Highway Cruising
Motorway speeds
286 km178 mi
Combined Cycle
Everyday winter commute
308 km191 mi
☀️ Mild Summer (23°C)
Optimal Temperature
City Driving
Peak regen recovery
506 km314 mi
Highway Cruising
Motorway speeds
361 km224 mi
Combined Cycle
Ideal mixed-use range
422 km262 mi
High-Power Road Trips

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
240 kW DC
Maximum Power
10-80% Session
21 min
Typical Road Stop
Average Power
190 kW DC
Sustained Rate
Range Added
880 km/h547 mph
Added per Hour
Plug & Charge (ISO 15118) No
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
9h45m
Full Overnight Charge
Charge Speed
46 km/h29 mph
Range per Hour
Port Location
Right Side - Front
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
3.5/ 5.0
Capable Long-Distance EV

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (440 km273 mi).

Vehicle Overview

  • Manufacturer NIO
  • WLTP Range 440 km273 mi
  • Net Battery 90 kWh
  • DC Fast Charging 240 kW
  • Towing Capacity 2,000 kg4,409 lbs
  • Market Availability Available
  • Release Date 6/1/2024
  • Telemetry Verified 5/20/2026
Frequently Asked Questions

NIO EL8 Long Range Range & Charging FAQ

What is the real-world highway and winter range of the NIO EL8 Long Range?

The official combined WLTP range for the NIO EL8 Long Range is 440 km (273 miles).

In cold winter conditions (-5°C / 23°F) at highway cruising speeds (120-130 km/h), expect a realistic highway range of approximately 317 km (197 miles) due to cold battery chemistry, cabin heating, and higher aerodynamic drag.

How long does it take to charge the NIO EL8 Long Range at home?

Charging the 90 kWh battery from 0% to 100% takes approximately 7.4 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 10.9 hours (typically overnight).

How fast is DC fast charging (10% to 80%)?

The NIO EL8 Long Range supports peak DC fast charging rates of up to 240 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 22 minutes at a compatible ultra-rapid charging station.

How much does it cost to charge the NIO EL8 Long Range?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €21.60. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €58.50.
