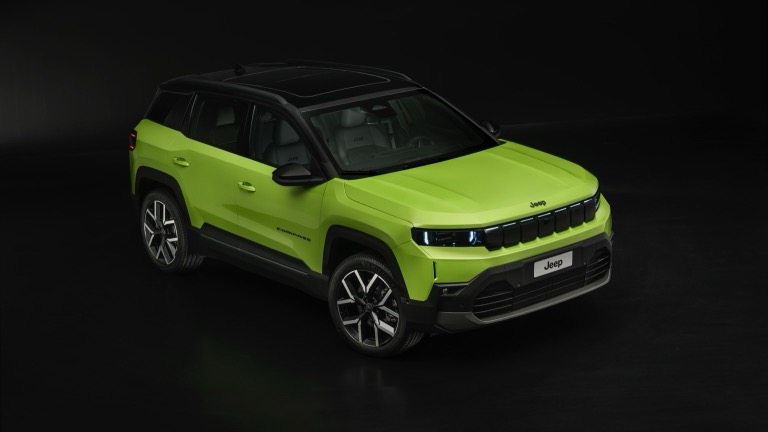

Jeep Compass Electric 4xe
Jeep logo
Jeep

Jeep Compass Electric 4xe

Available SUV AWD
54.900 € $59,292£46,665
WLTP Range
465 km289 mi
Net Battery
96.1 kWh
0-100 km/h
5.4s
Peak Power
276 kW
A day with this car
DC 10–80%
160 kW
10–80 time not listed
Home wallbox
10h 30m
11 kW AC · 0–100% overnight
Winter highway
335 km208 mi
Cold, 120 km/h class
Charge ports
CCS
Type 2 · left rear

One-stop highway day · 475 km295 mi in 4h 34min

335 km208 mi
3h 3min
15 min
charge
140 km87 mi
1h 16min
WLTP Range
465 km289 mi
Official Combined
Usable Battery
96.1 kWh
102.0 kWh Gross
Peak Power
276 kW
370 hp
0-100 km/h
5.4 s
Max: 180 km/h112 mph
DC Fast Peak
160 kW
High-Power DC

Performance & Powertrain

AWD Dedicated EV Platform
Total System Power 276 kW (370 hp)
Total System Torque 577 Nm
0-100 km/h Sprint 5.4 s
Top Speed 180 km/h112 mph
Drivetrain Configuration AWD
Platform Code STLA Medium

Battery Engineering & Chemistry

400 V NMC
Usable Battery Capacity 96.1 kWh
Nominal Battery Capacity 102.0 kWh
Battery Type Lithium-ion
Cell Form Factor Prismatic
Nominal Voltage No Data
Total Cell Count No Data
Pack Configuration No Data
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Towing: 1300 kg Frunk: 0 L0.0 cu ft
Boot Cargo Volume 515 L18.2 cu ft
Max Cargo (Seats Down) 1527 L53.9 cu ft
Front Trunk (Frunk) 0 L0.0 cu ft
Unladen Curb Weight 2,347 kg5,174 lbs
Overall Length 4587 mm180.6 in
Width (with mirrors) No Data
Overall Height 1689 mm66.5 in
Wheelbase 2795 mm110.0 in
Towing Capacity (Braked) 1,300 kg2,866 lbs
Towing Capacity (Unbraked) No Data
Gross Vehicle Weight (GVWR) No Data
Max Payload Capacity No Data

Cabin, Chassis & Thermal Management

Seating Capacity 5 people seats
Isofix Anchor Points No Data
Turning Circle No Data
Market Segment JC - Medium
Roof Rails No Data
Heat Pump Standard Equipment

Euro NCAP Safety Assessment

★★★★ 4 Stars (2025)
Adult Occupant Protection 80%
Child Occupant Protection 85%
Vulnerable Road Users (Pedestrians) 74%
Active Safety Assist Systems 66%

Estimated Range by Weather & Road

Efficiency: 207 Wh/km333 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 65% for cold motorway driving, 115% for mild city driving). Your range depends on speed, wheels, load and heating. For a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 302 km188 mi | Mild Urban: 535 km332 mi
Worst-Case Winter Highway WLTP Lab: 465 km289 mi Best-Case Mild Urban
❄️ Cold Winter (-10°C)
Cabin Heat On
City Driving
Urban stop-and-go
344 km214 mi
Highway Cruising
Motorway speeds
302 km188 mi
Combined Cycle
Everyday winter commute
326 km203 mi
☀️ Mild Summer (23°C)
Optimal Temperature
City Driving
Peak regen recovery
535 km332 mi
Highway Cruising
Motorway speeds
381 km237 mi
Combined Cycle
Ideal mixed-use range
446 km277 mi
High-Power Road Trips

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
160 kW DC
Maximum Power
10-80% Session
~25 min
Typical Road Stop
Average Power
150 kW DC
Sustained Rate
Range Added
690 km/h429 mph
Added per Hour
Plug & Charge (ISO 15118) No
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
10h30m
Full Overnight Charge
Charge Speed
45 km/h28 mph
Range per Hour
Port Location
Left Side - Rear
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
3.0/ 5.0
Capable Long-Distance EV

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (465 km289 mi).

Vehicle Overview

  • Manufacturer Jeep
  • WLTP Range 465 km289 mi
  • Net Battery 96.1 kWh
  • DC Fast Charging 160 kW
  • Towing Capacity 1,300 kg2,866 lbs
  • Market Availability Available
  • Release Date 6/23/2026
  • Telemetry Verified 7/5/2026
Frequently Asked Questions

Jeep Compass Electric 4xe Range & Charging FAQ

What is the real-world highway and winter range of the Jeep Compass Electric 4xe?

The official combined WLTP range for the Jeep Compass Electric 4xe is 465 km (289 miles).

In cold winter conditions (-5°C / 23°F) at highway cruising speeds (120-130 km/h), expect a realistic highway range of approximately 335 km (208 miles) due to cold battery chemistry, cabin heating, and higher aerodynamic drag.

How long does it take to charge the Jeep Compass Electric 4xe at home?

Charging the 96.1 kWh battery from 0% to 100% takes approximately 7.9 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 11.7 hours (typically overnight).

How fast is DC fast charging (10% to 80%)?

The Jeep Compass Electric 4xe supports peak DC fast charging rates of up to 160 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 35 minutes at a compatible ultra-rapid charging station.

How much does it cost to charge the Jeep Compass Electric 4xe?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €23.06. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €62.46.
