Ford Mustang Mach-E SR AWD(MY22)
Ford logo
Ford

Ford Mustang Mach-E SR AWD(MY22)

Available SUV AWD
62.250 € $67,230£52,913
WLTP Range
345 km214 mi
Net Battery
70 kWh
0-100 km/h
6.3s
Peak Power
198 kW
A day with this car
DC 10–80%
41 min
109 kW peak · 76 kW avg
Home wallbox
7h 30m
11 kW AC · 0–100% overnight
Winter highway
248 km154 mi
Cold, 120 km/h class
Charge ports
CCS
Type 2 · left front

One-stop highway day · 346 km215 mi in 3h 24min

251 km156 mi
2h 17min
15 min
charge
95 km59 mi
52min
WLTP Range
345 km214 mi
Official Combined
Usable Battery
70 kWh
75.7 kWh Gross
Peak Power
198 kW
266 hp
0-100 km/h
6.3 s
Max: 180 km/h112 mph
DC Fast Peak
109 kW
High-Power DC

Performance & Powertrain

AWD Dedicated EV Platform
Total System Power 198 kW (266 hp)
Total System Torque 580 Nm
0-100 km/h Sprint 6.3 s
Top Speed 180 km/h112 mph
Drivetrain Configuration AWD
Platform Code No Data

Battery Engineering & Chemistry

400 V No Data
Usable Battery Capacity 70 kWh
Nominal Battery Capacity 75.7 kWh
Battery Type Lithium-ion
Cell Form Factor No Data
Nominal Voltage No Data
Total Cell Count 288
Pack Configuration 96s3p
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Towing: 750 kg Frunk: 100 L3.5 cu ft
Boot Cargo Volume 519 L18.3 cu ft
Max Cargo (Seats Down) 1420 L50.1 cu ft
Front Trunk (Frunk) 100 L3.5 cu ft
Unladen Curb Weight 2,138 kg4,713 lbs
Overall Length 4713 mm185.6 in
Width (with mirrors) 2097 mm82.6 in
Overall Height 1624 mm63.9 in
Wheelbase 2984 mm117.5 in
Towing Capacity (Braked) 750 kg1,653 lbs
Towing Capacity (Unbraked) 750 kg1,653 lbs
Gross Vehicle Weight (GVWR) 2640 kg5,820 lbs
Max Payload Capacity 577 kg1,272 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 5 people seats
Isofix Anchor Points Yes, 2 seats
Turning Circle 11.6 m38.1 ft
Market Segment JD - Large
Roof Rails No
Heat Pump No

Euro NCAP Safety Assessment

★★★★★ 5 Stars (2021)
Adult Occupant Protection 92%
Child Occupant Protection 86%
Vulnerable Road Users (Pedestrians) 69%
Active Safety Assist Systems 82%

Estimated Range by Weather & Road

Efficiency: 203 Wh/km327 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 65% for cold motorway driving, 115% for mild city driving). Your range depends on speed, wheels, load and heating. For a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 224 km139 mi | Mild Urban: 397 km247 mi
Worst-Case Winter Highway WLTP Lab: 345 km214 mi Best-Case Mild Urban
❄️ Cold Winter (-10°C)
Cabin Heat On
City Driving
Urban stop-and-go
255 km158 mi
Highway Cruising
Motorway speeds
224 km139 mi
Combined Cycle
Everyday winter commute
241 km150 mi
☀️ Mild Summer (23°C)
Optimal Temperature
City Driving
Peak regen recovery
397 km247 mi
Highway Cruising
Motorway speeds
283 km176 mi
Combined Cycle
Ideal mixed-use range
331 km206 mi
High-Power Road Trips

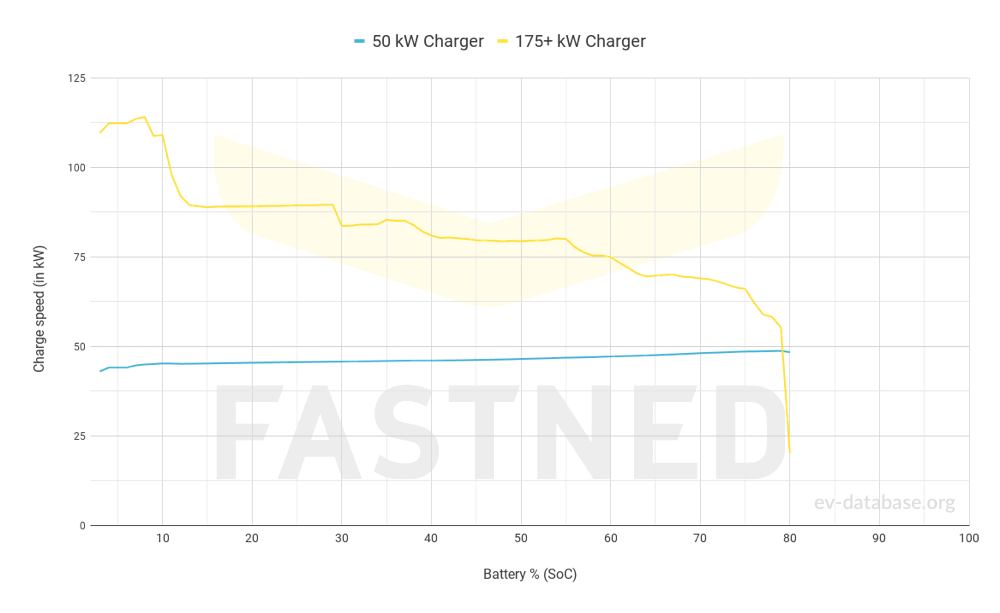

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
109 kW DC
Maximum Power
10-80% Session
41 min
Typical Road Stop
Average Power
76 kW DC
Sustained Rate
Range Added
350 km/h217 mph
Added per Hour
Plug & Charge (ISO 15118) Yes
Battery Preconditioning Auto via Nav
Autocharge Protocol Yes
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
7h30m
Full Overnight Charge
Charge Speed
46 km/h29 mph
Range per Hour
Port Location
Left Side - Front
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
-
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
2.0/ 5.0
Moderate Highway Feasibility

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (345 km214 mi).

Vehicle Overview

  • Manufacturer Ford
  • WLTP Range 345 km214 mi
  • Net Battery 70 kWh
  • DC Fast Charging 109 kW
  • Towing Capacity 750 kg1,653 lbs
  • Market Availability Available
  • Release Date 4/1/2022
  • Telemetry Verified 5/24/2026
Frequently Asked Questions

Ford Mustang Mach-E SR AWD(MY22) Range & Charging FAQ

What is the real-world highway and winter range of the Ford Mustang Mach-E SR AWD(MY22)?

The official combined WLTP range for the Ford Mustang Mach-E SR AWD(MY22) is 345 km (214 miles).

In cold winter conditions (-5°C / 23°F) at highway cruising speeds (120-130 km/h), expect a realistic highway range of approximately 248 km (154 miles) due to cold battery chemistry, cabin heating, and higher aerodynamic drag.

How long does it take to charge the Ford Mustang Mach-E SR AWD(MY22) at home?

Charging the 70 kWh battery from 0% to 100% takes approximately 5.7 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 8.5 hours (typically overnight).

How fast is DC fast charging (10% to 80%)?

The Ford Mustang Mach-E SR AWD(MY22) supports peak DC fast charging rates of up to 109 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 37 minutes at a compatible ultra-rapid charging station.

How much does it cost to charge the Ford Mustang Mach-E SR AWD(MY22)?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €16.80. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €45.50.
