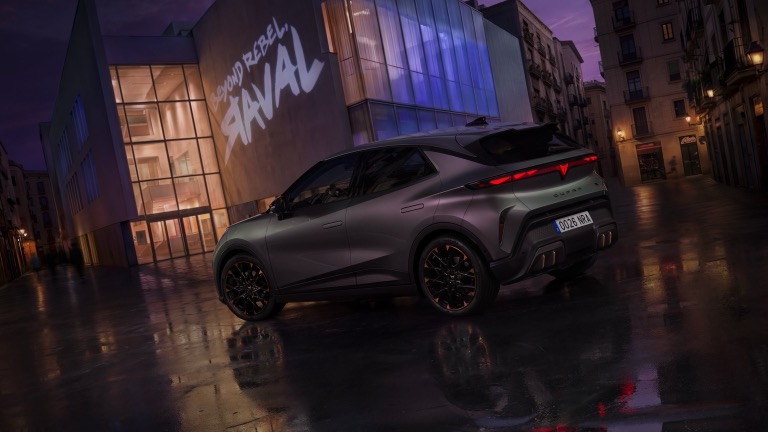

CUPRA Raval 155 kW - 52 kWh
CUPRA logo
CUPRA

CUPRA Raval 155 kW - 52 kWh

Available Hatchback FWD
37.250 € $40,230£31,663
WLTP Range
330 km205 mi
Net Battery
52 kWh
0-100 km/h
7.1s
Peak Power
155 kW
A day with this car
DC 10–80%
24 min
105 kW peak · 95 kW avg
Home wallbox
5h 45m
11 kW AC · 0–100% overnight
Winter highway
238 km148 mi
Cold, 120 km/h class
Charge ports
CCS
Type 2 · right front

One-stop highway day · 361 km224 mi in 3h 32min

239 km149 mi
2h 11min
15 min
charge
121 km75 mi
1h 6min
WLTP Range
330 km205 mi
Official Combined
Usable Battery
52 kWh
56.0 kWh Gross
Peak Power
155 kW
208 hp
0-100 km/h
7.1 s
Max: 160 km/h99 mph
DC Fast Peak
105 kW
High-Power DC

Performance & Powertrain

FWD Dedicated EV Platform
Total System Power 155 kW (208 hp)
Total System Torque 290 Nm
0-100 km/h Sprint 7.1 s
Top Speed 160 km/h99 mph
Drivetrain Configuration FWD
Platform Code VAG MEB+

Battery Engineering & Chemistry

400 V NMC
Usable Battery Capacity 52 kWh
Nominal Battery Capacity 56.0 kWh
Battery Type Lithium-ion
Cell Form Factor Prismatic
Nominal Voltage 356 V
Total Cell Count No Data
Pack Configuration No Data
Manufacturer Battery Warranty 8 years / 160,000 km99 mi

Dimensions, Cargo & Towing

Towing: 1200 kg Frunk: 0 L0.0 cu ft
Boot Cargo Volume 441 L15.6 cu ft
Max Cargo (Seats Down) No Data
Front Trunk (Frunk) 0 L0.0 cu ft
Unladen Curb Weight 1,610 kg3,549 lbs
Overall Length 4046 mm159.3 in
Width (with mirrors) 2000 mm78.7 in
Overall Height 1514 mm59.6 in
Wheelbase 2599 mm102.3 in
Towing Capacity (Braked) 1,200 kg2,646 lbs
Towing Capacity (Unbraked) 750 kg1,653 lbs
Gross Vehicle Weight (GVWR) 2080 kg4,586 lbs
Max Payload Capacity 545 kg1,202 lbs

Cabin, Chassis & Thermal Management

Seating Capacity 5 people seats
Isofix Anchor Points Yes, 3 seats
Turning Circle 10.9 m35.8 ft
Market Segment B - Compact
Roof Rails No
Heat Pump No Data

Estimated Range by Weather & Road

Efficiency: 158 Wh/km254 Wh/mi

Estimates, not measurements: the WLTP figure scaled by the same temperature and road factors for every car (for example 65% for cold motorway driving, 115% for mild city driving). Your range depends on speed, wheels, load and heating. For a planned stop, use the charging simulator.

Estimated Range Envelope
Cold Highway: 215 km134 mi | Mild Urban: 379 km235 mi
Worst-Case Winter Highway WLTP Lab: 330 km205 mi Best-Case Mild Urban
❄️ Cold Winter (-10°C)
Cabin Heat On
City Driving
Urban stop-and-go
244 km152 mi
Highway Cruising
Motorway speeds
215 km134 mi
Combined Cycle
Everyday winter commute
231 km144 mi
☀️ Mild Summer (23°C)
Optimal Temperature
City Driving
Peak regen recovery
379 km235 mi
Highway Cruising
Motorway speeds
271 km168 mi
Combined Cycle
Ideal mixed-use range
317 km197 mi
High-Power Road Trips

DC Ultra-Fast Charging (10% to 80%)

⚡ CCS2 High-Power
Peak Intake
105 kW DC
Maximum Power
10-80% Session
24 min
Typical Road Stop
Average Power
95 kW DC
Sustained Rate
Range Added
570 km/h354 mph
Added per Hour
Plug & Charge (ISO 15118) Yes
Battery Preconditioning Auto via Nav
Autocharge Protocol No Data
Home & Overnight

AC Destination & Wallbox Charging (0% to 100%)

Type 2 Inverter
Max AC Power
11 kW AC
3-Phase Wallbox
0-100% Duration
5h45m
Full Overnight Charge
Charge Speed
59 km/h37 mph
Range per Hour
Port Location
Right Side - Front
Body Placement
Mobile Power Station

Bidirectional Charging Capabilities (V2X)

V2L (Vehicle-to-Load)
Camping & devices
3.6 kW AC
V2H (Vehicle-to-Home)
Emergency backup
Not supported
V2G (Vehicle-to-Grid)
Grid arbitrage
Not supported

Highway Endurance Score

EVDB Index
2.0/ 5.0
Moderate Highway Feasibility

Calculated from sustained 10-80% DC fast charging speed, cold-weather aerodynamic drag, and official WLTP range (330 km205 mi).

Vehicle Overview

  • Manufacturer CUPRA
  • WLTP Range 330 km205 mi
  • Net Battery 52 kWh
  • DC Fast Charging 105 kW
  • Towing Capacity 1,200 kg2,646 lbs
  • Market Availability Available
  • Release Date 4/9/2026
  • Telemetry Verified 5/17/2026
Frequently Asked Questions

CUPRA Raval 155 kW - 52 kWh Range & Charging FAQ

What is the real-world highway and winter range of the CUPRA Raval 155 kW - 52 kWh?

The official combined WLTP range for the CUPRA Raval 155 kW - 52 kWh is 330 km (205 miles).

In cold winter conditions (-5°C / 23°F) at highway cruising speeds (120-130 km/h), expect a realistic highway range of approximately 238 km (148 miles) due to cold battery chemistry, cabin heating, and higher aerodynamic drag.

How long does it take to charge the CUPRA Raval 155 kW - 52 kWh at home?

Charging the 52 kWh battery from 0% to 100% takes approximately 4.3 hours using a standard 11 kW 3-phase AC wallbox. On a single-phase 7.4 kW home charger, a full charge takes around 6.3 hours (typically overnight).

How fast is DC fast charging (10% to 80%)?

The CUPRA Raval 155 kW - 52 kWh supports peak DC fast charging rates of up to 105 kW. Recharging from 10% to 80% State of Charge (SoC) requires approximately 29 minutes at a compatible ultra-rapid charging station.

How much does it cost to charge the CUPRA Raval 155 kW - 52 kWh?

At an average European residential electricity tariff of €0.24/kWh, a complete 0-100% home charge costs approximately €12.48. At high-power public DC charging networks (~€0.65/kWh), a full recharge costs approximately €33.80.
